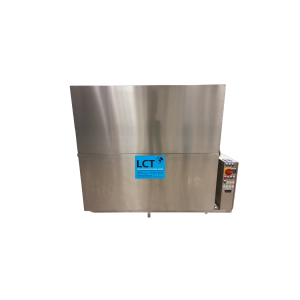

LCT HTW 1500, Standard: Without insulation as standard

LCT HTW 1500, Standard: Without insulation as standard

SKU: 0001-33

Category: HTW

Delivery time: ca. 5 weeks (DE - int. shipments may differ)

28.838,46 €

incl. 19% VAT ,

→ Single-stage cleaning and degreasing

→ Made entirely of stainless steel

→ Simple and safe

→ Ideal for parts cleaning, maintenance, production, manufacturing, and services

→ Wash fluid tank: 770 liters

→ Contaminants: resin, wax, scale, mineral rust, corrosion protection, solder, polishing pastes, dust, abrasion, release agents, oil, grease, carbon deposits, soot

Stck

Fully automatic small parts washing system for single-stage cleaning and degreasing.

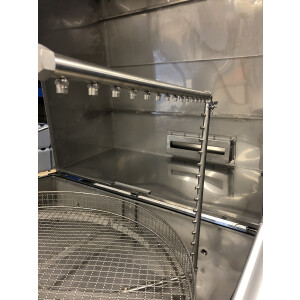

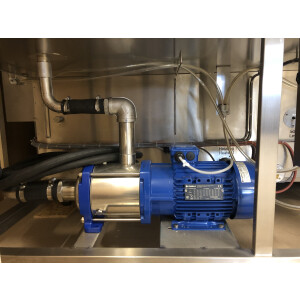

A maintenance-friendly high-pressure spray system with a three-dimensional nozzle system offers us the LCT HTW 1500 for thorough cleaning and degreasing of tools and other parts. The driven rotating basket and the spray pressure ensure our cleaners work optimally on the parts to be cleaned.

Special Features:

• Made entirely of stainless steel (V2A), suitable for mechanical cleaning in acidic, neutral, and alkaline Environments

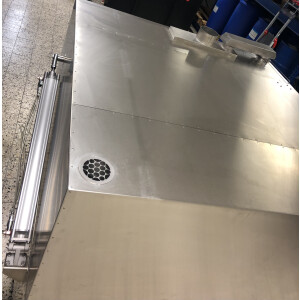

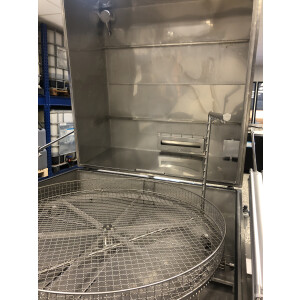

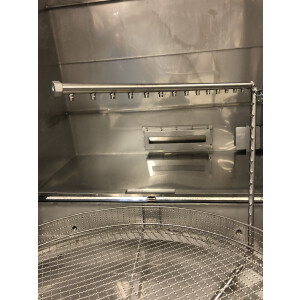

• Fan nozzles • Digital temperature controller • Lid opening at 80°C, pneumatically operated • Electrically driven rotating basket with motor protection

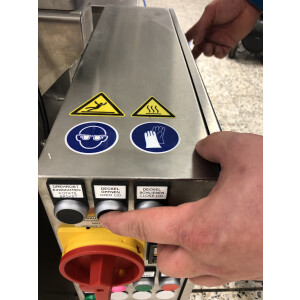

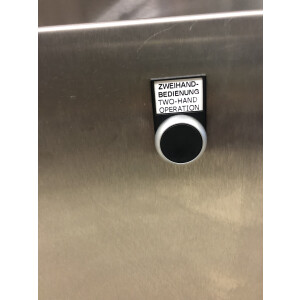

• Push-button for turning the basket outside the cleaning process

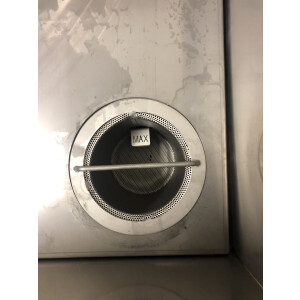

• Tank cover and sieve filter under the basket made of stainless steel

• Connections for plate phase separators • Compact design, easy handling, high cleaning power

• Dry run protection, door safety switch

• Effective and cost-effective; energy-efficient

• Operating pressure: 4 bar

Technical Data:

Minimum operating temperature: 10°C

Maximum operating temperature: 85°C

Maximum filling capacity: 770 liters

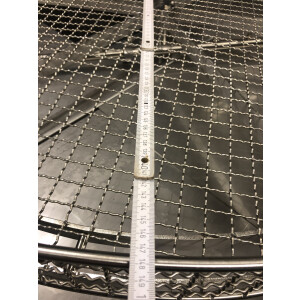

Inner basket diameter: approximately 1500 mm

Usable height: 700 mm

Total weight without tank filling: 670 KG

Tank material: V2A stainless steel

Power consumption: approximately 21.2 kW

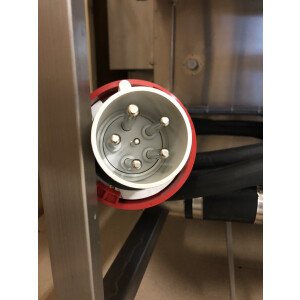

Electrical connection: 400 V, 50 Hz

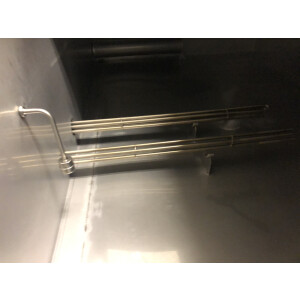

Heating: 2 x 9 kW

Flow rate: 14.4 m³/h"
